A TRUE BREAKTHROUGH THAT RADICALLY RENEWS THE FELT COMPACTION CONCEPTS!
All traditional felt compactors have a considerably higher compaction potential than what is actually required by fabrics (> 30%). Despite this, in some cases it becomes difficult to achieve the required dimensional standards.
This DOES NOT HAPPEN with the FLASH MEMORY
3 PATENTS ASSURE SHRINKAGE UNDER CONTROL
TRADITIONAL FELT COMPACTOR
Tension control is heavily affecting the shrinking values
Greater the felts thickness, greater the shrinking values
Larger the compacting cylinder diameter, greater the fabric stabilization
Working speed is heavily influencing the shrinking values: higher the speed lower the compaction result
Shrinkage measurements repeated 24 hours after the process have a > 40% shrinkage loss

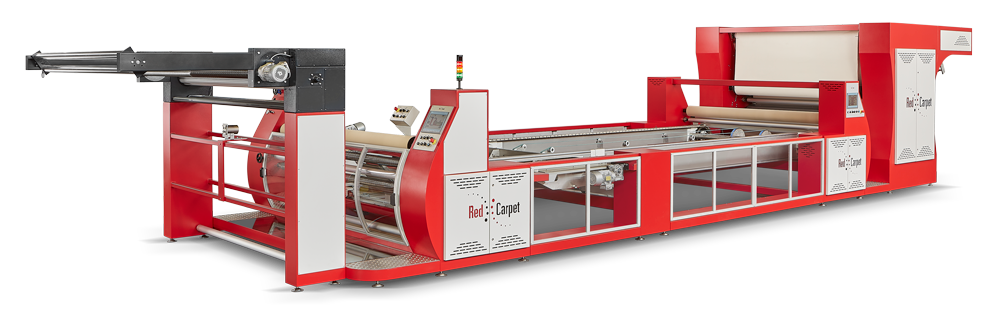

FLASH MEMORY FELT COMPACTOR
Tension control is having a limited influence on shrinking values
Just need the right thickness, not necessarily corresponding to the highest
The diameter of the compacting cylinder is mainly affecting the ironing effect
Speed is having a limited influence on the compaction result
After 24 hours the shrinkage loss is <20%
Red Carpet has identified and managed to control the variable that allows to memorize the shrinkage given by the compacting felts:
THE PRESSURE APPLIED ON THE FABRIC DURING THE TREATMENT
The MEMORY patent ensures the best exploitation of the felt compaction capacity and allows to lock the compaction values achieved during the process. As a result the production speed can be substantially increased and the daily production rates will be considerably increased.
The shoe contains innovative solutions that have led to individual patents.
Built in anti-friction material and subjected to suitable processing - patent - can be tensioned - patent - to adapt to the different working needs required by different fabrics. In this way the fabric is optimally hold on the felt and consequently:
- the compaction results are improved
- the costs and downtime for maintenance are considerably reduced
- the well-known "elephant-skin" effect is considerably reduced
TAILOR MADE ON YOUR NEEDS
Entry and exit tailor made
Double conical field
Steam / water mixing and nebulization system
Compaction control devices
|Working width||2200 - 2600mm|
|Mechanical speed MIN - MAX||5 ÷ 50 m/min|
|Production speed||40 ÷ 50 m/min|
